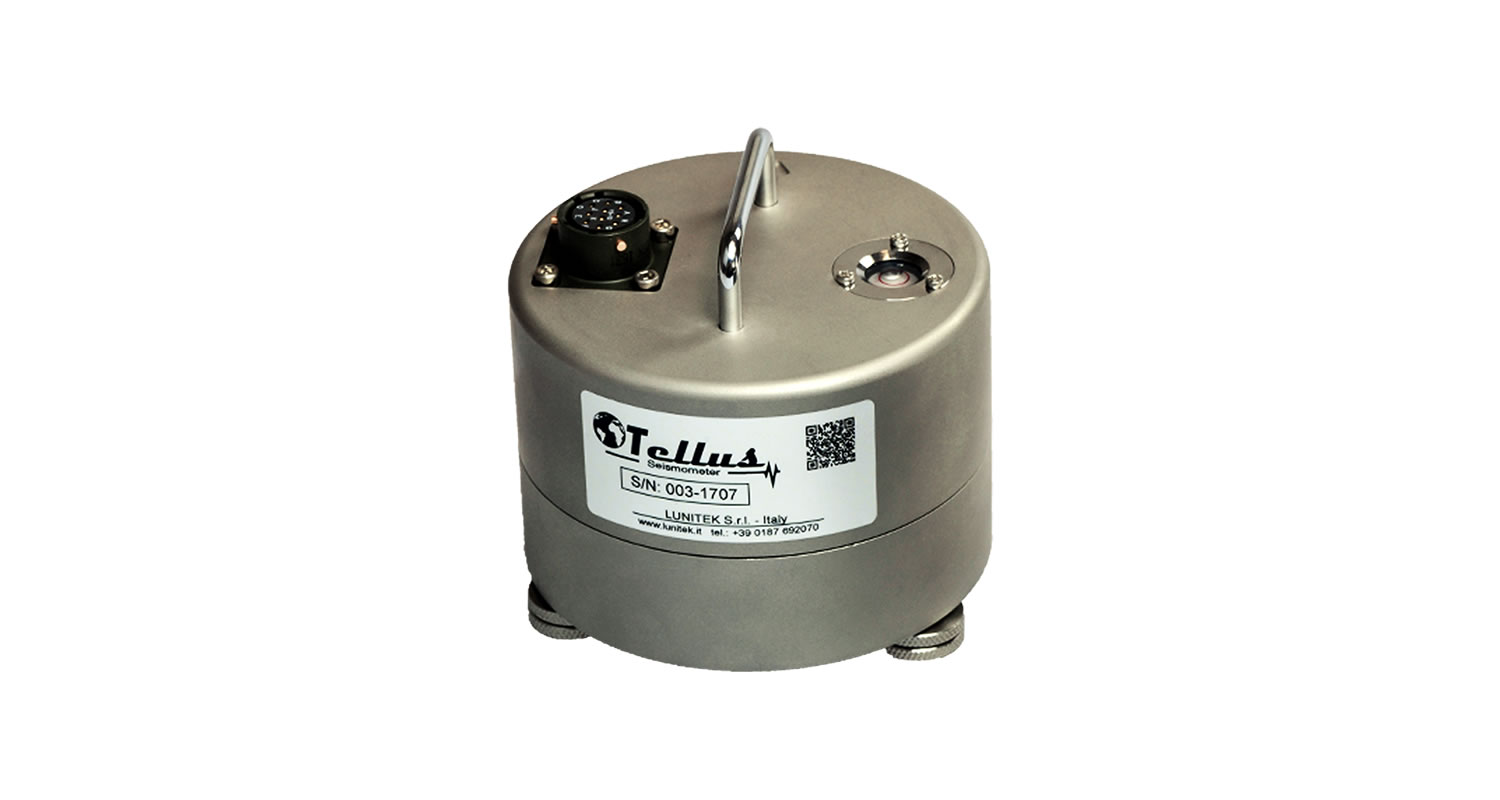

TELLUS-1s

Tellus-1s is a three-component short band seismometer that can be used both in active and passive seismology providing great results for local seismic monitoring with an excellent price-performance ratio.

Tellus-1s is manufactured using high quality geophones whose frequency response is extended electronically with high thermal stability and low noise components. The transduction factor of every single unit is individually calibrated on the shake table with an accuracy within ±1%.

Tellus-1s exhibits a flat bandpass between 1Hz and 100Hz.

The transduction factor of the single ended version is 400V/m/s and 800V/m/s for the differential output.

Tellus-1s is manufactured in AISI316 stainless steel housing offering a high level of protection IP68 thus it is ideal for harsh environments and for field use.

An aluminum hard coated housing variant is available as a budget version when a rugged version is not needed.

A leveling bubble and adjustable spikes are provided for easy regulation and quick installation, upon request it is possible to include other fixing systems, for example a wall-mount baseplate and longer spikes.

Tellus-1s is ideal suited to micro-seismic and Nakamura surveys methods.

Dynamic range > 140dB
Frequency range 1 Hz ÷ 100 Hz
Tansduction factor 400V/m/s (S) 800V/m/s (D)
High accuracy​

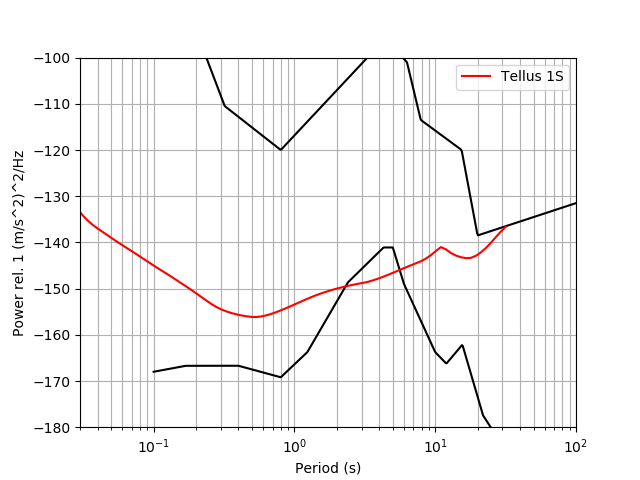

Low self-noise​​
Good thermal stability
Low power
Robust
No need for mechanical clamping
