PIXCI Camera Link Frame Grabbers

Schede Frame Grabbers Camera Link

Categoria:

Descrizione

Disponiamo di frame grabber camera link per ExpressCard, PCI Express, bus PCI integrati e sistemi PCI standard.

Le nostre schede frame grabber si collegano facilmente al computer e sono pronte per l’uso. Grazie alle numerose opzioni con diversi tipi di bus, larghezze di dati, connessioni, frame rate variabili e altro ancora, abbiamo una scheda in grado di soddisfare le vostre esigenze.

Grazie alle elevate prestazioni e all’elaborazione delle immagini, tra cui la qualità delle immagini e la velocità di acquisizione, i nostri frame grabber Camera Link sono utilizzati in applicazioni aeree, automobilistiche, mediche, mobili e persino subacquee.

Le schede frame grabber di EPIX, Inc. supportano diversi modelli di telecamere. Se la vostra telecamera non è presente nell’elenco, progetteremo e assembleremo qualcosa di unico in base alle vostre specifiche e alle vostre esigenze di budget.

Modelli disponibili

CAMERA LINK for PCI Express
PIXCI® EB1 Base Configuration PCI Express x1 24 bits Low Profile
PIXCI® EB1-PoCL Base Configuration PCI Express x1 24 bits PoCL, Low Profile
PIXCI® EB1G2 Base Configuration PCI Express 2.0 x1 24 bits Low Profile

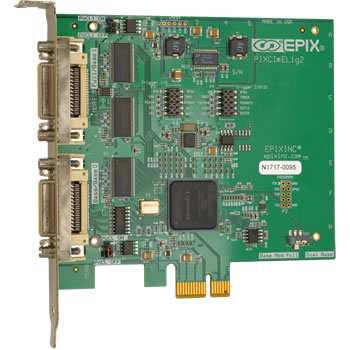

PIXCI® EL1 Base / Medium / Full Configuration
switchable to 1 or 2 Base Configuration		 PCI Express 2.0 x1 64 bits or
24 bits × 2		 Full Camera Link, Dual Base
PIXCI® E4 Base / Medium / Full Configuration
switchable to 1 or 2 Base Configuration		 PCI Express 2.0 x4 80 bits or
24 bits × 2		 High Data Rate, Full Camera Link, Dual Base, PoCL
PIXCI® E4G2 1 or 2 Medium / Full / 10-tap Configuration
switchable to 1 to 4 Base Configuration		 PCI Express 2.0 x4 80 bits × 2 or
24 bits × 4		 Highest Data Rate, 1 or 2 Full, up to 4 Base
PIXCI® E8 Base / Medium / Full Configuration
switchable to 1 or 2 Base Configuration		 PCI Express x8 80 bits or
24 bits × 2		 High Data Rate, Full Camera Link, Dual Base, PoCL

CAMERA LINK for Embedded PCI Express Buses
PIXCI® mf2280 Base / Medium / Full Configuration M.2 Slot M 2280 80 bits Embedded, Full Camera Link
PIXCI® mf2280+ Base / Medium / Full Configuration M.2 Slot M 2280 80 bits Embedded, Full Camera Link with Dedicated Receivers
PIXCI® mf2280d Base / Medium / Full Configuration M.2 Slot M 2280 80 bits Embedded, Dual Camera Link
PIXCI® mf2280dl Base / Medium / Full Configuration M.2 Slot M 2280 80 bits Embedded, Low Profile
Dual Camera Link
PIXCI® miniH2x4F Base / Medium / Full Configuration M.2 Slot M 80 bits Embedded, Full Camera Link
PIXCI® miniH2B 1 or 2 Base Configuration mPCIe x1 Gen 2, M.2M, or M.2E 24 bits × 2 Embedded, Dual Base Camera Link
PIXCI® miniH2F Base / Medium / Full Configuration mPCIe x1 Gen 2, M.2M, or M.2E 80 bits Embedded, Full Camera Link
PIXCI® miniH2BL 1 or 2 Base Configuration mPCIe x1 Gen 2, M.2M, or M.2E 24 bits × 2 Embedded, Dual Base Camera Link, Mountable Connectors
PIXCI® miniH2FL Base / Medium / Full Configuration mPCIe x1 Gen 2, M.2M, or M.2E 80 bits Embedded, Full Camera Link, Mountable Connectors
PIXCI® EB1miniH Base Configuration mPCIe x1, M.2 E, or M.2M 24 bits Smallest Camera Link Frame Grabber
PIXCI® EB1mini Base Configuration mPCIe x1 24 bits Smallest Camera Link Frame Grabber
PIXCI® EB1miniF Base Configuration mPCIe x1 24 bits Smallest Camera Link Frame Grabber
PIXCI® EB1miniGC Base Configuration mPCIe x1 24 bits Smallest Camera Link Frame Grabber
PIXCI® EB1miniGM Base Configuration mPCIe x1 24 bits Smallest Camera Link Frame Grabber

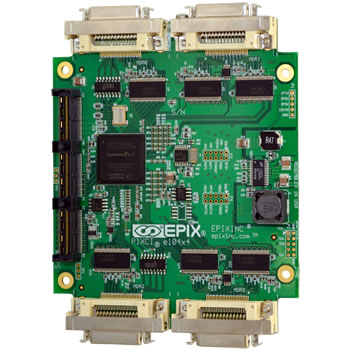

PIXCI® e104x4 1 or 2 Medium / Full / 10-tap Configuration
switchable to 1 to 4 Base Configuration		 PCIe/104 x4 2.0 80 bits × 2 or
24 bits × 4		 Embedded, 1 or 2 Full, up to 4 Base
PIXCI® E4TX2 1 or 2 Medium / Full / 10-tap Configuration
switchable to 1 to 4 Base Configuration		 Internal PCIe x4 2.0 80 bits × 2 or
24 bits × 4		 Embedded, Jetson TX1/TX2 carrier, 1 or 2 Full, up to 4 Base

CAMERA LINK for Thunderbolt
PIXCI® mf2280-C Base / Medium / Full Configuration Thunderbolt 3 80 bits Embedded, Full Camera Link
PIXCI® ECB1-34 Base Configuration ExpressCard/34 24 bits Mobile

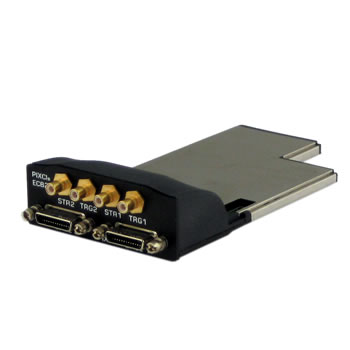

PIXCI® ECB2 1 or 2 Base Configuration ExpressCard/54 24 bits × 2 Dual Base, Mobile

CAMERA LINK for PCI

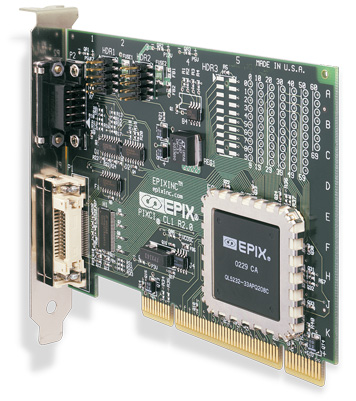

PIXCI® CL1 Base Configuration 32bit/33MHz
3V or 5V PCI		 24 bits Support for 400+ Cameras
PIXCI® CL2 Base / Medium / Full Configuration 64bit/66MHz
3V PCI		 64 bits Up to 400 MB/s

CAMERA LINK Signal Generator for PCI Express
PIXCI® EB1TG Base Configuration PCI Express x1 24 bits Test Pattern Generator
PIXCI® EB1miniTGC Base Configuration Mini PCI Express 24 bits Test Pattern Generator
Mountable Connector
PIXCI® EB1miniTGS Base Configuration Mini PCI Express 24 bits Test Pattern Generator
