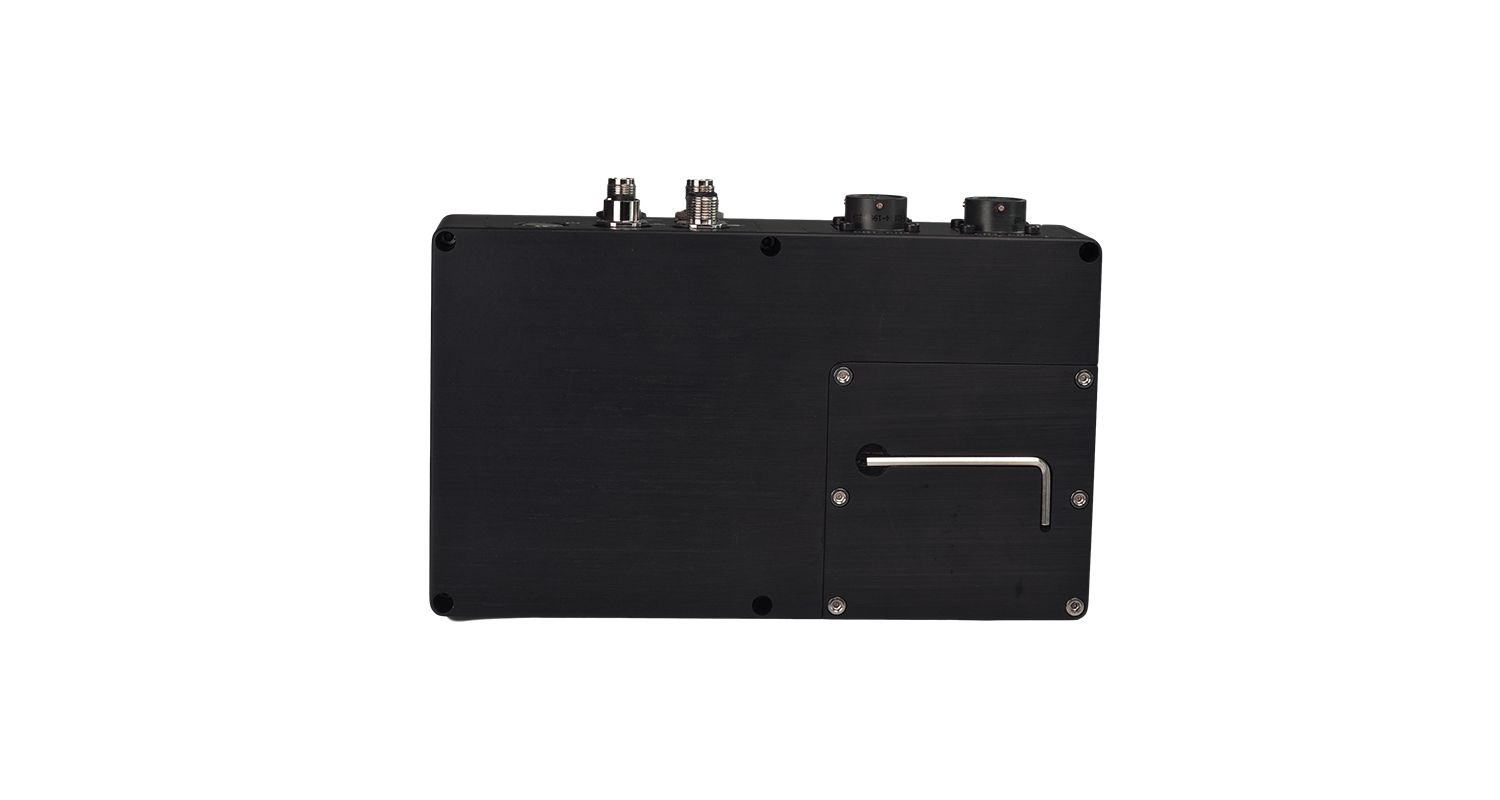

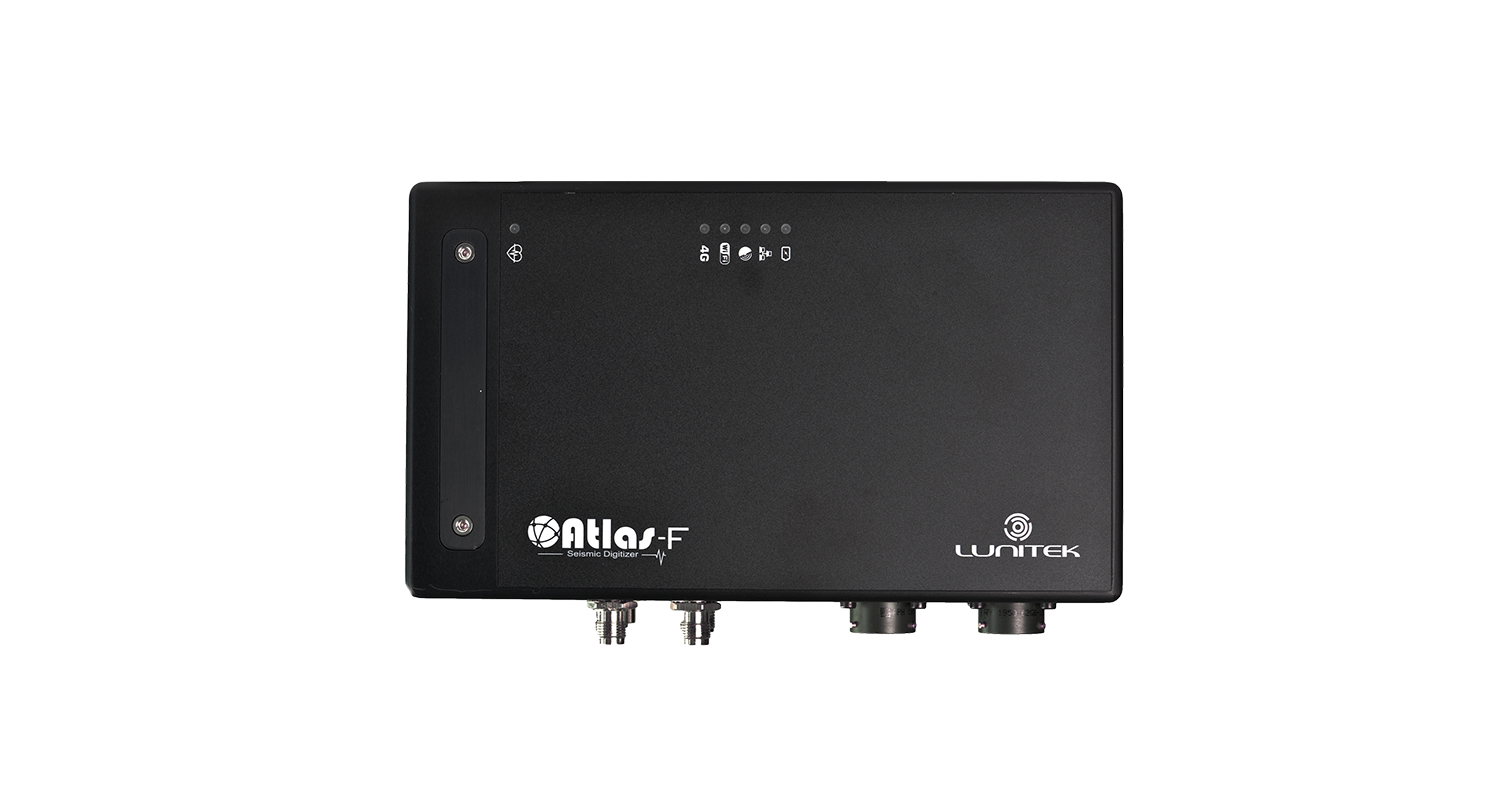

ATLAS-F-plus

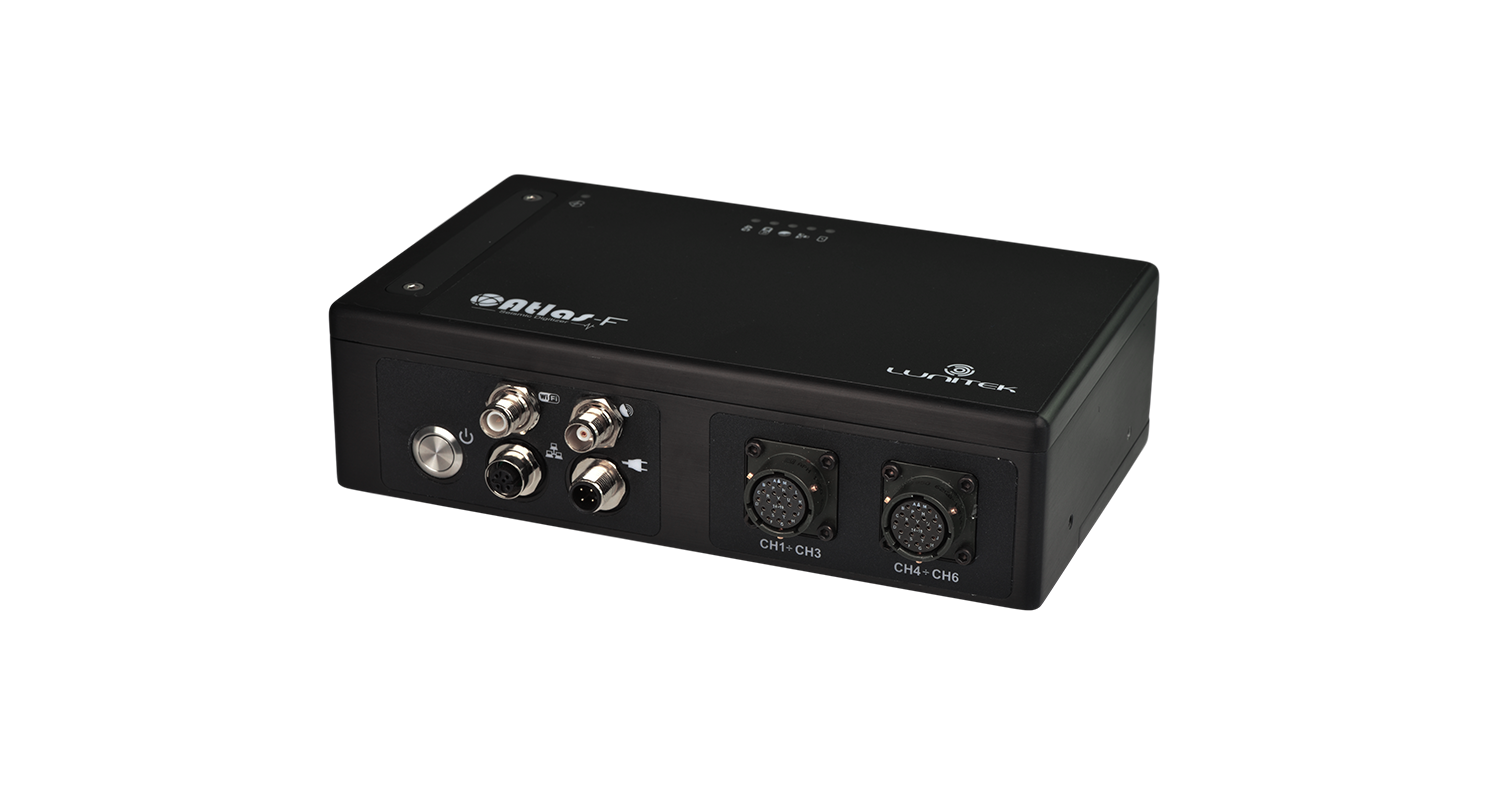

ATLAS-F-plus is an evolution of the ATLAS-F digitizer that was designed to have more computational power for low latency, high demanding software. Compared to standard ATLAS it offers accessible/removable SD and SIM card slots, hot-swappable dual-slot battery and the connectors positioned on one side.

The ATLAS-F-plus is easily transportable in flights, the user can take out the batteries and transport them in the cabin. In addition, the dual battery slot is also useful when ATLAS-F-plus is. used for long-term monitoring as the batteries can be replaced one by one without turning off the instrument.

ATLAS-F-plus is available with 3 or 6 differential input channels for external sensors.

ADC resolution 32 bit

Dynamic range > 140dB@100 sps

Sampling rates 25, 50, 100, 125, 200, 250, 400, 500 sps

Lan, Wi-fi and 4G modem

Built-in GNSS receiver

Integrated Ups, 15hrs system autonomy

Miniseed Data Format

Compatibility with Earthworm, Seiscomp, Geopsy, Seisgram2k

Cortex A53 1.5 GHZ quad-core / ram 2GB DDR4
